Pipe thread leaking is one of the most common issues we see in industrial piping systems.

As a manufacturer of pipe nipples, pipe couplings, and threaded fittings, we frequently support engineers and buyers dealing with leakage during installation or operation.

In most cases, pipe thread leaking is not caused by material defects.

It is usually related to thread sealing, installation method, or incorrect fitting selection.

Understanding the root cause is critical for effective plumbing leak detection and long-term reliability.

Quick Answer

Pipe thread leaking usually happens due to improper sealing, damaged threads, or mismatched standards.

To fix it, we recommend disassembling the joint, inspecting the threads, and reapplying proper sealant such as PTFE tape or thread sealant.

Tighten correctly without over-torquing.

For prevention, always use compatible thread standards, high-quality fittings, and correct installation practices.

Detailed Explanation

In threaded piping systems, sealing does not happen at the thread crest itself.

It occurs through the deformation and filling of gaps between male and female threads.

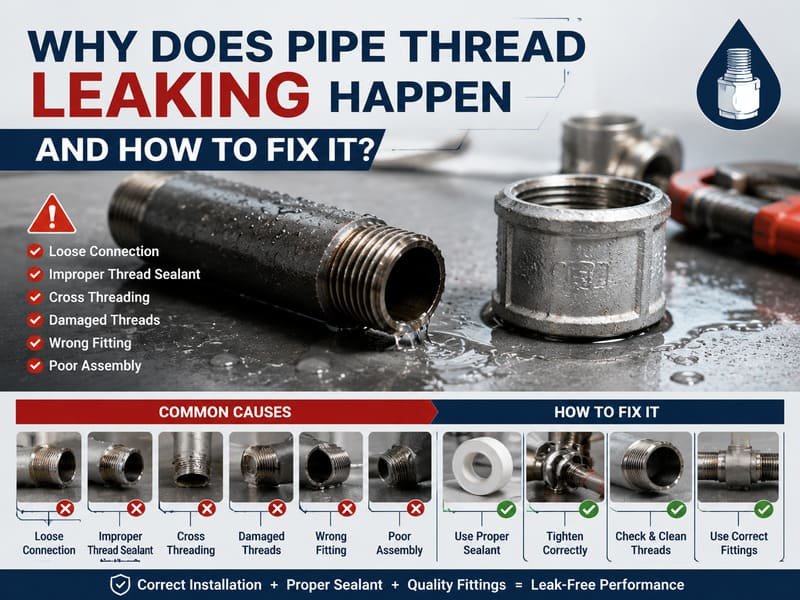

From our field experience, pipe thread leaking mainly comes from these factors:

1. Incorrect Thread Standard

Different regions use different standards such as NPT and BSPT.

If a pipe nipple does not match the pipe coupling standard, gaps will remain even after tightening. This leads to continuous leakage.

2. Poor Thread Quality

Low-quality machining causes uneven threads.

We often see leakage when threads have burrs, scratches, or incorrect taper angles. Even small defects can prevent proper sealing.

3. Insufficient Sealant

Sealant plays a critical role in plumbing leak repair.

Without PTFE tape or liquid sealant, metal-to-metal sealing is not reliable. Micro gaps will allow fluid or gas to escape.

4. Over-tightening

Many installers believe tighter is better. This is incorrect.

Over-tightening can deform threads or crack fittings.

This often leads to hidden leaks that appear later under pressure.

5. Contamination

Oil, dust, or metal debris inside threads can block proper sealing.

This is a common issue during on-site installation.

Common Mistakes

We regularly help customers troubleshoot these typical errors:

• Mixing NPT and BSP threads without adapters
• Using too little or too much PTFE tape
• Wrapping tape in the wrong direction
• Ignoring minor thread damage
• Skipping pressure testing after installation

These mistakes often lead to repeated plumbing leak repair and increased downtime.

Engineering Tips

Based on our manufacturing and field support experience, we recommend the following:

1. Always Match Thread Standards

Confirm whether your system uses NPT, BSPT, or BSPP before purchasing pipe fittings.

2. Use Proper Sealant

Apply 3–5 wraps of PTFE tape. Wrap in the direction of the thread.

For high-pressure systems, use liquid thread sealant instead.

3. Inspect Before Installation

Check threads on both pipe nipples and pipe couplings.

Reject any parts with visible damage or deformation.

4. Apply Correct Torque

Hand-tighten first. Then use a wrench for 1–2 additional turns.

Avoid excessive force.

5. Perform Leak Testing

Always conduct pressure testing after installation.

This is the most reliable method for plumbing leak detection before operation.

6. Choose Quality Materials

Use stainless steel threaded pipe fittings for corrosive environments.

Use carbon steel with proper coating for general industrial use.

Conclusion

Pipe thread leaking is preventable with the right approach.

In our experience, correct thread matching, proper sealing, and careful installation solve most leakage problems.

If you are selecting pipe nipples, pipe couplings, or need support on how to seal leaking pipe threads, we can provide technical guidance and reliable products for your application.

Feel free to contact us for engineering support or product recommendations.

FAQ

1. How to repair a leaking pipe thread without replacing it?

We recommend disassembling the joint, cleaning the threads, and reapplying PTFE tape or sealant. Then reinstall with correct torque.

2. What is the best method for plumbing leak detection?

Pressure testing is the most effective method. For critical systems, use soap solution or ultrasonic leak detection tools.

3. How to prevent plumbing leaks in threaded systems?

Use correct thread standards, high-quality fittings, proper sealant, and follow correct installation procedures. Regular inspection also helps prevent failures.
