| Material | Stainless Steel |
|---|---|
| Material Grade | SS304, SS316 |
| Thread Type | NPT, BSPT, BSPP |
| Standard | ASTM A312, ASTM A733 |
| Surface Finish | Polished |
| Size Range | 1/8" – 12" |
| Schedule | SCH 40: 1.73mm-9.53mm, SCH 80: 2.41mm-17.48mm |
| Thread Standard | ASME B1.20.1 |
| Pressure Rating | 150 PSI (SCH 40) / 300 PSI (SCH 80) |

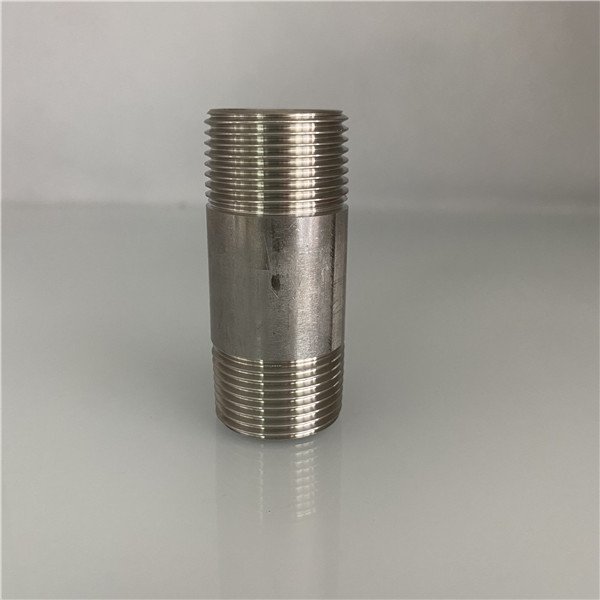

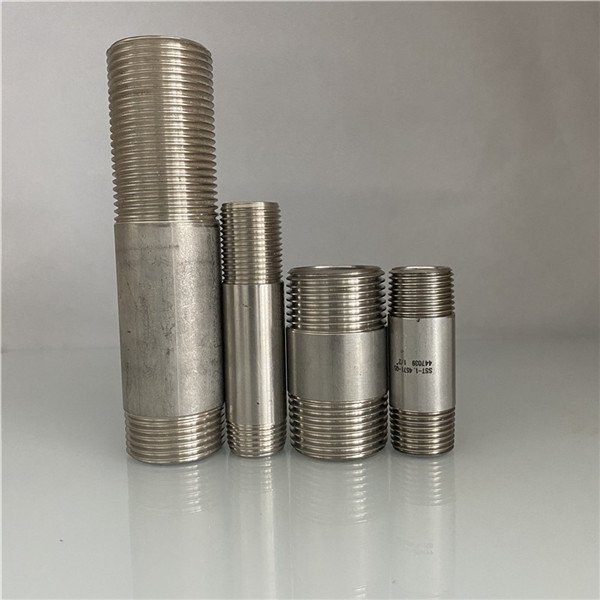

We supply close, short, long, extra-long, and hex nipples from 1/8″ through 8″ NPS, in schedules ranging from SCH 40 to XXS.
ASTM A733 and ASME B1.20.1 (NPT) threaded nipples are leak-tight partners in piping.
304 and 316/316L stainless steel offer corrosion resistance in areas with chloride exposure.

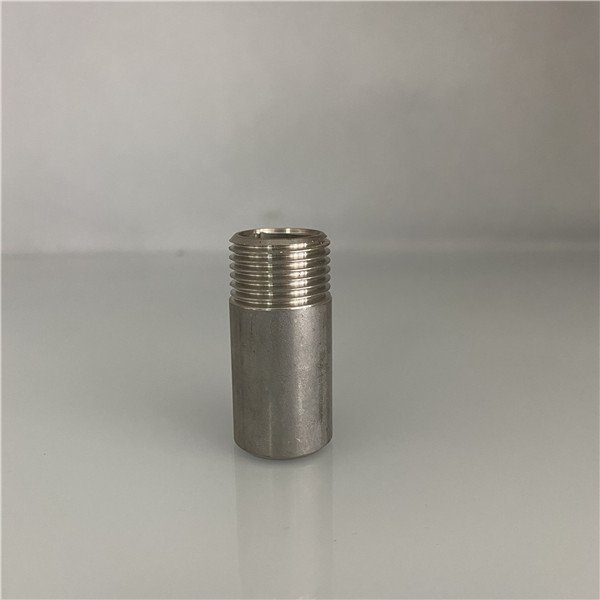

Whether seamless or welded pipe nipples from ASTM A733, with threading on both ends (TBE) or one end (TOE).
BSP threading is available on request.
304 is a cost-effective material for HVAC and water treatment.
316 and 316L grades are used where elevated resistance to pitting and crevice corrosion.
Mill test reports (MTR) to EN 10204 3.1 are available with every order.
All products are traceable, and dimensional inspection is in-house before shipment.
We supply distributors, EPC contractors, and end-user facilities with no minimum order quantity on standard sizes.
Offer custom lengths, thread forms, and special material certifications — contact us with your specifications for a quote.
