What Is a Galvanized Pipe Nipple?

Actually, the galvanized steel pipe nipple is a steel pipe nipple with a zinc coating.

Galvanizing is not the material; it is a surface treatment to prevent corrosion. You must specify the material for galvanized pipe nipples.

Common materials with a zinc coating are carbon steel and malleable iron.

Galvanized Carbon Steel Pipe Nipple & Galvanized Malleable Iron Pipe Nipple

Generally, nipples that need to be galvanized are carbon steel and malleable iron.

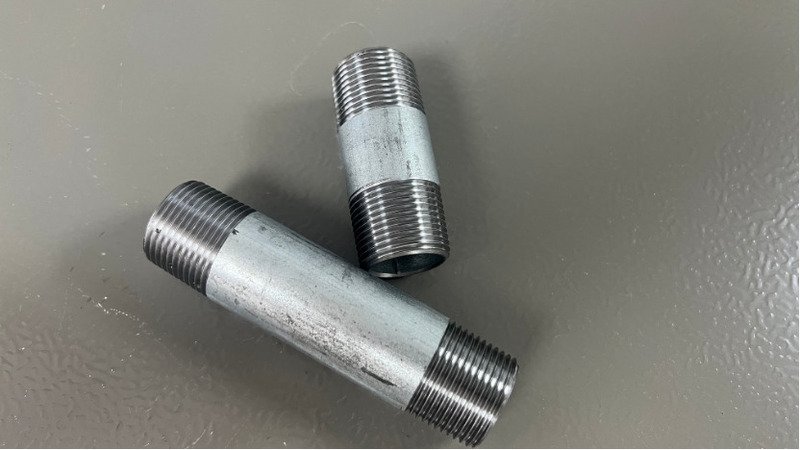

Galvanized Steel Nipple

Leading galvanized steel pipe nipple material, increasing corrosion resistance with a galvanized coating.

High strength, good pressure resistance, more comprehensive length range. We can manufacture close nipple, barrel nipple, and more.

The production process is usually:

Carbon steel pipe → cutting → threading at one/both ends → Surface treatment → hot-dip galvanizing

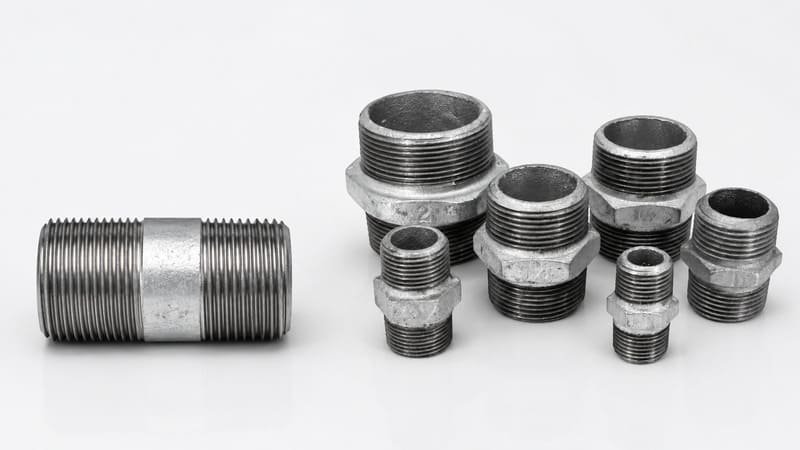

Galvanized Iron Nipple

Galvanized malleable iron pipe nipple is used in fire sprinkler and construction.

Different production methods from galvanized carbon steel pipe nipple:

Malleable cast iron casting → thread processing → hot-dip galvanizing

Commonly used in combination with malleable iron elbow, tee, and couplings. Size standardized higher.

Projects	Galvanized carbon steel pipe nipple	Galvanized malleable iron pipe nipple
Materials	Steel pipe	Malleable iron
Manufacturing Methods	Turning processing	Casting processing
Strength	Higher	Good but a bit brittle
Size Flexibility	High	Standard size is the main choice
Common Standard	Astm A733	ASTM A197, ASME B16.3
Application	Industrial Pipeline	Fire Sprinkler, Construction

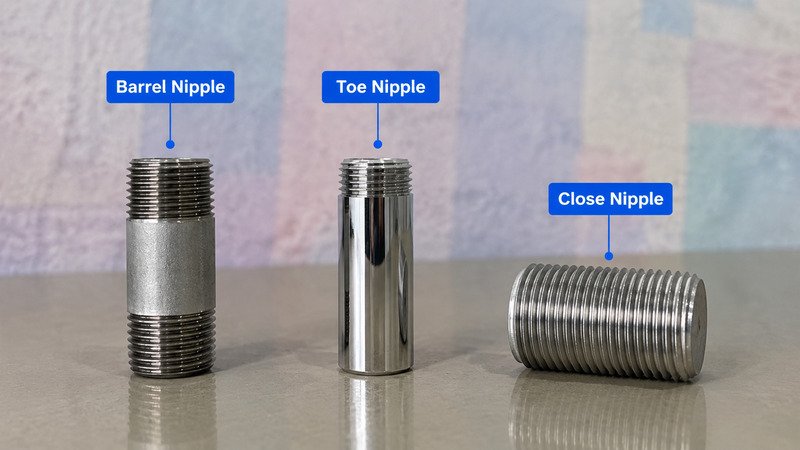

Types of Galvanized Pipe Nipples

Galvanized steel pipe nipples, like other pipe nipples, have multiple types.

Close nipple

Both threaded ends almost connect, and don’t have a clearly unthreaded part in the middle.

Close nipple features make it suitable for limited-space pipeline connections.

Barrel pipe nipple

The barrel pipe nipple is a pipe nipple with threaded ends and a smooth unthreaded part in the middle. This type is most common.

Weld pipe nipple

Weld pipe nipples can be called toe pipe nipples. A toe nipple has one threaded end and one unthreaded end; the unthreaded end can be welded to the pipeline.

A welded pipe nipple is often referred to as a pipe nipple produced by welding processing. So, using a toe pipe nipple more accurately expresses this pipe nipple type.

Galvanizing Methods

Galvanizing methods include hot-dip galvanizing and electro galvanizing. The main distinction is the galvanizing coating formed and the zinc-to-steel combination mode.

Hot-dip galvanized

Hot-dip galvanizing involves immersing steel pipe nipples in molten zinc. Zinc and the steel react metallurgically, forming a zinc-iron alloy layer.

Hot-dip galvanized has a thicker zinc coating, higher corrosion resistance, and is suitable for outdoor and fire sprinkler systems.

Electro galvanized

Electro galvanizing involves applying a layer of pure zinc through an electrochemical process. It is a type of surface coating.

Electro galvanized pipe nipple surfaces are smooth and more beautiful. The drawback is that the zinc coating is a little thinner.

Galvanized Carbon Steel vs Malleable Iron: Which One Should You Choose?

Choose Galvanized Carbon Steel Pipe Nipple When:

You need:

• Higher mechanical strength
• Larger pipe sizes
• Industrial piping applications
• Equipment connections

Typical industries:

• Industrial manufacturing
• Construction
• Water systems

Choose Galvanized Malleable Iron Pipe Nipple When:

You need:

• Compatibility with galvanized fittings
• Threaded piping assemblies
• Easy installation and maintenance

Typical applications:

• Plumbing systems
• Gas piping
• Building services

Galvanized Pipe Nipple Thread Types

Thread selection is important for proper installation.

NPT Thread

Common in North America.

Features:

• Tapered thread
• Good sealing performance

BSP Thread

Common in international markets.

Types include:

• BSPP
• BSPT

Common Mistakes When Selecting Galvanized Pipe Nipples

Confusing Carbon Steel and Malleable Iron

Although both are galvanized, their base materials are different.

The application should determine which type is selected.

Ignoring Fitting Compatibility

A galvanized malleable iron nipple is usually selected together with galvanized malleable iron fittings.

Using Galvanized Products in Unsuitable Environments

Galvanized products have corrosion limitations.

For highly corrosive environments, stainless steel may be a better choice.

Frequently Asked Questions

Are galvanized carbon steel nipples and galvanized malleable iron nipples the same?

No. They have different base materials and manufacturing processes.

Carbon steel nipples are made from steel pipe, while malleable iron nipples are made through casting and heat treatment.

Which galvanized nipple is stronger?

Carbon steel nipples generally provide higher tensile strength, while malleable iron provides good toughness and fitting compatibility.

Are galvanized nipples suitable for outdoor use?

Yes, galvanized coatings provide improved corrosion resistance, but environmental conditions should still be considered.

Can galvanized pipe nipples be customized?

Yes. Manufacturers can provide different:

• Sizes
• Lengths
• Thread standards
• Packaging options

Conclusion

Galvanized pipe nipples are widely used because they combine mechanical performance with corrosion protection.

When selecting between galvanized carbon steel pipe nipples and galvanized malleable iron pipe nipples, the key difference is the base material and application requirement.

Galvanized carbon steel nipples are ideal for:

• Industrial piping
• Higher strength requirements
• Larger systems

Galvanized malleable iron nipples are ideal for:

• Threaded fitting assemblies
• Plumbing systems
• Building applications

Choosing the correct galvanized pipe nipple ensures better connection performance, durability, and long-term reliability.
