What Is a Pipe Nipple?
A pipe nipple is a short length of pipe with external threads on one or both ends.
It is commonly used to connect two fittings, pipes, valves, or other components in a piping system.
Compared with standard pipes, pipe nipples are manufactured in shorter lengths and are designed specifically for threaded connections.
They are widely used in plumbing, oil and gas, chemical processing, water systems, and industrial piping applications.

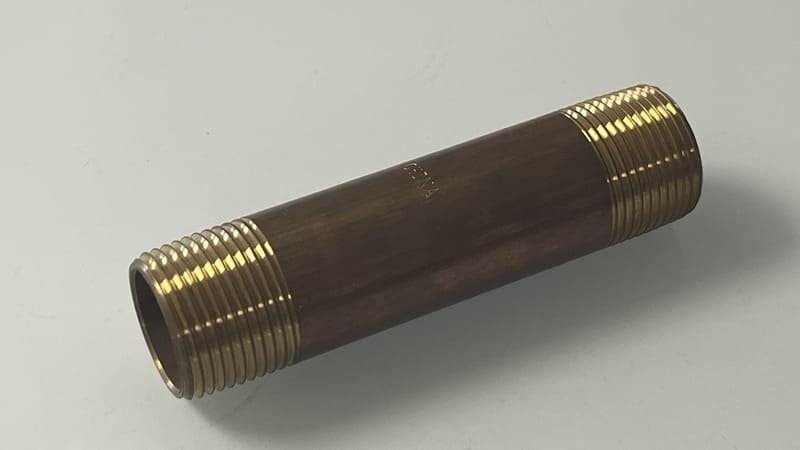

Pipe nipples are available in different materials, including stainless steel, carbon steel, galvanized steel, and brass, allowing engineers and buyers to select the most suitable option according to pressure requirements, corrosion resistance, and operating environment.
Pipe Nipple Structure Explained
A typical pipe nipple consists of several important parts:
1. Pipe Body
The pipe body provides the main flow channel for liquids or gases. The material selection determines the nipple’s strength, corrosion resistance, and service life.
Common materials include:
- Stainless steel
- Carbon steel
- Galvanized steel
- Brass
2. Threaded Ends
The threaded ends allow the pipe nipple to connect with other threaded components.
Common thread types include:
- NPT (National Pipe Thread)
- BSP (British Standard Pipe)
- BSPT (British Standard Pipe Tapered)
Thread accuracy is critical because improper threading can cause leakage or connection failure.

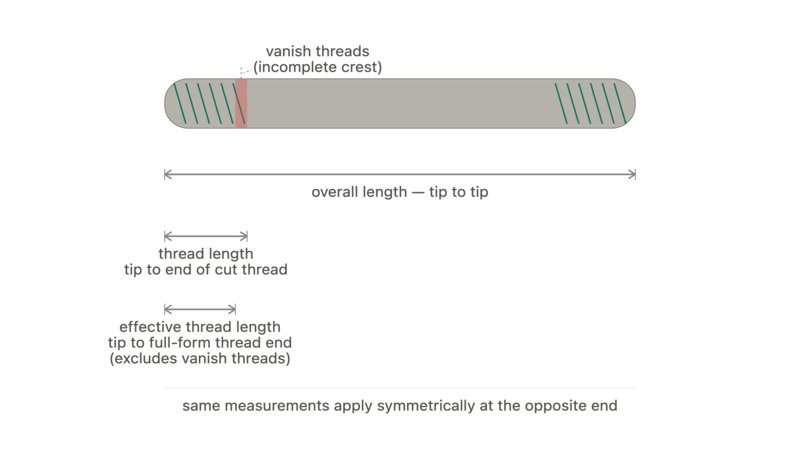

3. Length
Pipe nipple length is an important specification when selecting a product.
The length may refer to:
- Overall length
- Thread length
- Effective length
Different applications require different nipple lengths depending on installation space and connection requirements.
Common Types of Pipe Nipples
Pipe nipples are available in several designs. The most common types include:

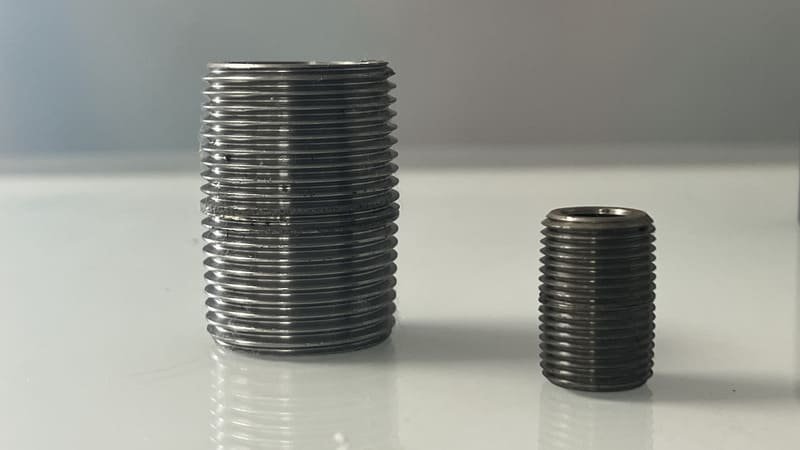

1. Close Nipple
A close nipple has threads almost along the entire length of the pipe with little or no unthreaded section in the center.
Features:
- Compact design
- Maximum thread engagement
- Suitable for limited installation space
Applications:
- Plumbing connections
- Small piping systems
- Tight installation areas

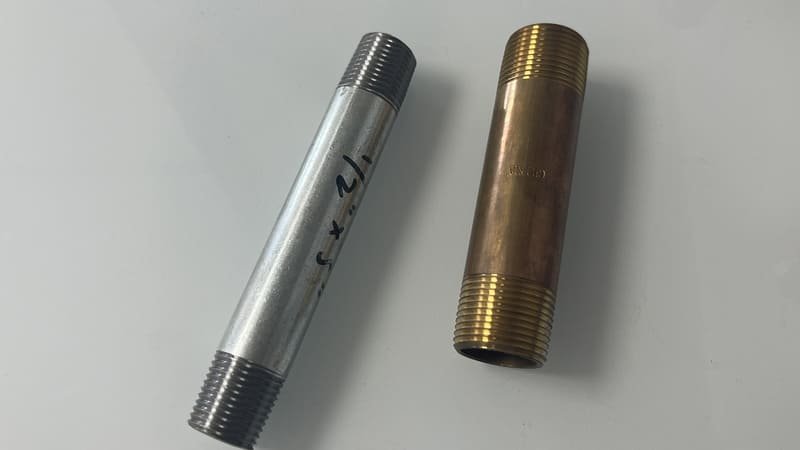

2. Barrel Nipple
A barrel nipple has threaded ends with an unthreaded section in the middle.
Features:
- Stronger center section
- Easier installation
- Available in many lengths
Applications:
- Industrial piping
- Water systems
- General-purpose connections

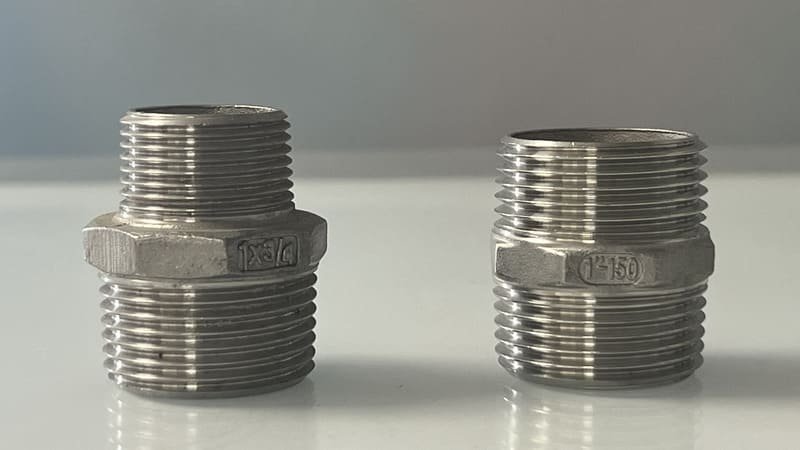

3. Hex Nipple
A hex nipple includes a hexagonal section in the middle, allowing installation with a wrench.
Advantages:
- Easy tightening
- Better installation efficiency
- Suitable for frequent maintenance
Applications:
- Hydraulic systems
- Industrial equipment
- Mechanical piping

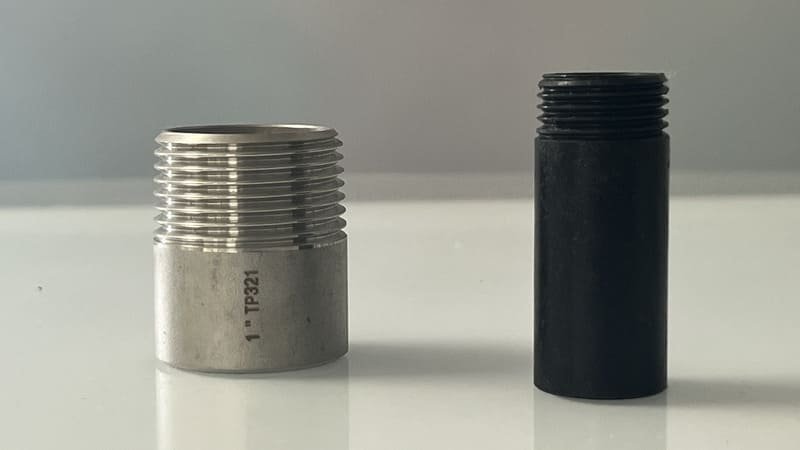

4. Weld Nipple
A weld nipple is designed for welding connections instead of threaded connections.
Advantages:
- High strength connection
- Suitable for high-pressure applications
Applications:
- Oil and gas systems
- Chemical processing
- Heavy industrial applications
Pipe Nipple Materials
Choosing the correct material is one of the most important factors when purchasing pipe nipples.

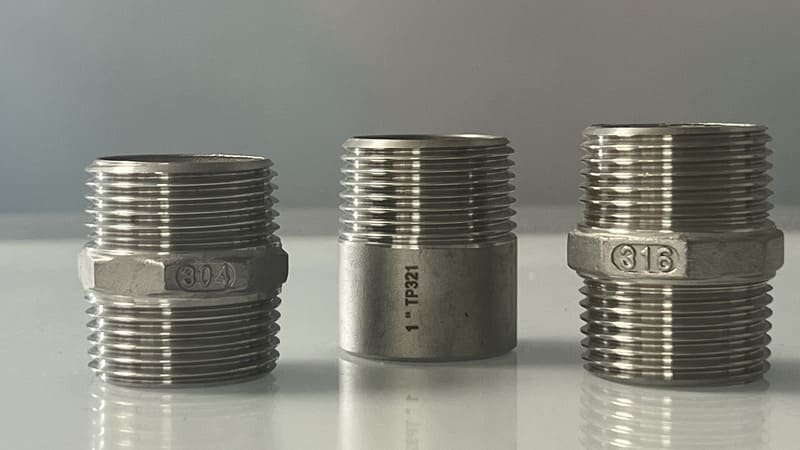

Stainless Steel Pipe Nipple
Stainless steel pipe nipples are widely used because of their excellent corrosion resistance.
Common grades:
- SS304
- SS316
Advantages:
- Excellent corrosion resistance
- Long service life
- Suitable for harsh environments
Applications:
- Food processing
- Chemical industries
- Marine environments
- Water treatment

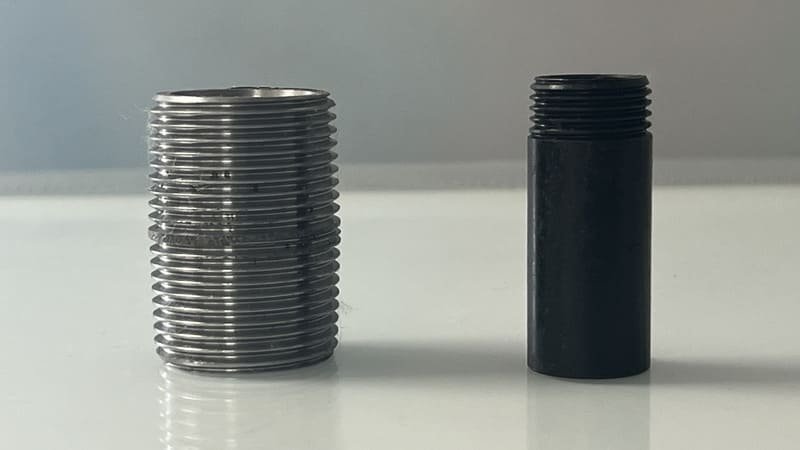

Carbon Steel Pipe Nipple
Carbon steel pipe nipples are known for their strength and durability.
Advantages:
- High mechanical strength
- Cost-effective
- Suitable for high-pressure systems
Applications:
- Oil and gas
- Industrial pipelines
- Construction systems

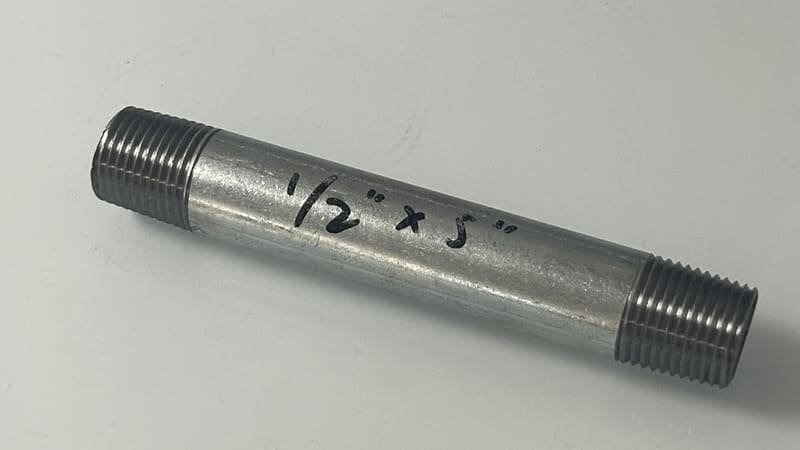

Galvanized Pipe Nipple
Galvanized pipe nipples feature a zinc coating that improves corrosion resistance.
Advantages:
- Better outdoor performance
- Economical solution
- Good protection against rust
Applications:
- Water supply systems
- Fire protection systems
- Building pipelines

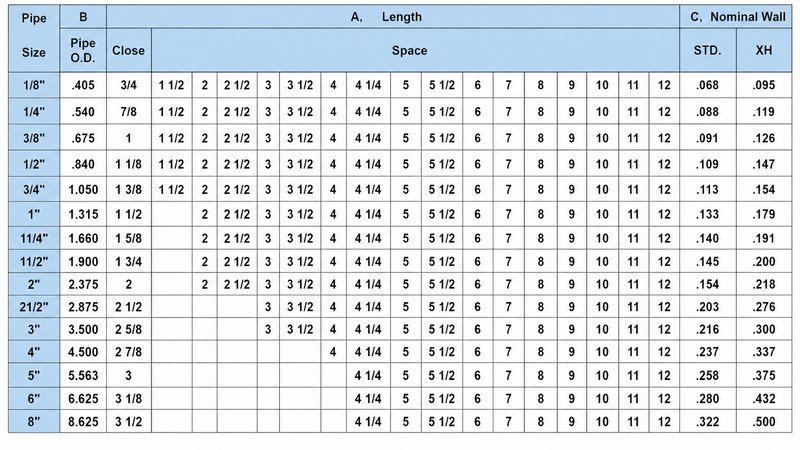

Common Pipe Nipple Sizes
Pipe nipples are available in various sizes to meet different piping requirements.
Common sizes include:
|
Nominal Pipe Size |
Common Application |
|---|---|
|
1/8 inch |
Small instrumentation systems |
|
1/4 inch |
Pneumatic and small piping |
|
1/2 inch |
Plumbing and general piping |
|
3/4 inch |
Industrial and commercial systems |
|
1 inch |
General industrial applications |
|
2 inch and above |
Large piping systems |
The correct size depends on:
- Flow requirements
- Pressure rating
- Connection type
- Installation space
Pipe Nipple Thread Standards
Thread standards ensure compatibility between different piping components.
NPT Thread
NPT is the most common thread standard in North America.
Features:
- 60-degree thread angle
- Tapered thread design
- Widely used in industrial applications
BSP Thread
BSP threads are commonly used in Europe, Asia, and many international markets.
Types include:
- BSPP (parallel thread)
- BSPT (tapered thread)
Pipe Nipple Applications
Pipe nipples are used in many industries.
Plumbing Systems
Common uses:
- Water supply
- Drainage systems
- Residential piping
Oil and Gas Industry
Applications include:
- Pipeline connections
- Equipment installation
- Pressure systems
Chemical Processing
Stainless steel pipe nipples are often selected because of their corrosion resistance.
Industrial Equipment
Used for connecting:
- Valves
- Pumps
- Pressure gauges
- Mechanical equipment
How to Choose the Right Pipe Nipple?
When selecting a pipe nipple, consider the following factors:
1. Material
Choose based on:
- Corrosion environment
- Temperature
- Pressure requirements
2. Thread Type
Confirm whether your system requires:
- NPT
- BSP
- BSPT
3. Size and Length
Check:
- Pipe diameter
- Required connection distance
- Installation space
4. Application Requirements
Different industries may require different standards and certifications.
Pipe Nipple Manufacturing Process
Professional manufacturers usually follow several production steps:
- Raw pipe selection
- Cutting according to required length
- Thread machining
- Surface treatment
- Dimension inspection
- Thread inspection
- Packaging and shipment
Strict quality control ensures reliable connection performance.
Frequently Asked Questions About Pipe Nipples
What is a pipe nipple used for?
It is used to connect two pipes, fittings, valves, or other components in a piping system through threaded or welded connections.
What are the most common types of pipe nipples?
The most common types include close nipples, barrel nipples, hex nipples, and weld nipples.
What materials are pipe nipples made from?
Pipe nipples are commonly manufactured from stainless steel, carbon steel, galvanized steel, and brass.
What is the difference between a pipe and a pipe nipple?
A pipe nipple is a short pipe section specifically designed to connect piping components, typically with threaded ends.
Conclusion
Pipe nipples are essential components in many piping systems because they provide reliable connections between pipes, fittings, and equipment.
Selecting the correct pipe nipple requires careful consideration of:
- Material
- Size
- Thread standard
- Application environment
A professional pipe nipple manufacturer can provide customized solutions including different materials, thread types, sizes, and production requirements.
